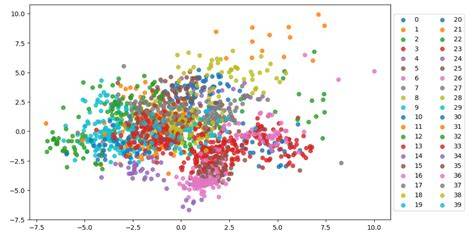

Creating compelling data visualizations is crucial for effectively communicating insights, and scatter plots are a powerful tool for illustrating relationships between variables. However, when dealing with multiple data series on a single scatter plot, distinguishing between them can become challenging. This is where the ability to control the visual representation of each series becomes essential. This article will guide you through the process of setting different color for each series in scatter plot, enhancing clarity and enabling more insightful data analysis. We will explore various techniques and tools that allow you to customize your scatter plots, making them more informative and visually appealing. Learn how to differentiate your data series with precision and improve the overall impact of your data storytelling.
Understanding Scatter Plots and Data Series
Scatter plots, also known as scatter graphs or scatter diagrams, are a fundamental type of data visualization that display the relationship between two numerical variables. Each point on the plot represents a single data point, with its position determined by the values of the two variables. Scatter plots are particularly useful for identifying correlations, clusters, and outliers in datasets. When you introduce multiple data series into a single scatter plot, you’re essentially overlaying several scatter plots on top of each other. This can be incredibly powerful for comparing different groups or categories within your data, but it also introduces the challenge of visually distinguishing between the series.
A data series, in the context of a scatter plot, represents a collection of data points that share a common characteristic or belong to the same category. For example, you might have a scatter plot showing the relationship between advertising spend and sales revenue for different product lines. Each product line would then constitute a separate data series. To effectively visualize multiple series, it’s crucial to apply distinct visual cues, such as color, shape, and size, to each series. Color is often the most effective and intuitive way to differentiate series, allowing viewers to quickly grasp the relationships within the data. Without clear differentiation, the plot can become cluttered and confusing, hindering effective communication.
The choice of colors is also important. Consider using a color palette that is visually distinct and accessible. Avoid using colors that are too similar or that may be difficult for people with color blindness to distinguish. Tools like ColorBrewer (https://colorbrewer2.org/) can help you select color palettes that are both visually appealing and accessible. By carefully selecting and applying colors to your data series, you can create scatter plots that are both informative and visually engaging.
Methods for Customizing Series Colors
Several software packages and programming libraries offer robust features for customizing the colors of data series in scatter plots. One popular option is Microsoft Excel, which provides a user-friendly interface for creating and modifying charts. In Excel, you can select individual data series and change their color through the “Format Data Series” options. Other tools like Google Sheets and Tableau also offer similar functionalities. However, for more advanced customization and programmatic control, programming languages like Python with libraries such as Matplotlib and Seaborn are often preferred. According to a Stack Overflow Developer Survey, Python is one of the most popular programming languages for data science. (https://insights.stackoverflow.com/survey/2023)
Using Python’s Matplotlib library, you can easily specify different colors for each series by iterating through the data and plotting each series with a unique color. Seaborn, built on top of Matplotlib, provides a higher-level interface and more aesthetically pleasing default styles. With Seaborn, you can use functions like scatterplot() and hue parameter to automatically assign different colors based on a categorical variable. R, another popular language for statistical computing, also offers similar capabilities through libraries like ggplot2. Regardless of the tool you choose, the underlying principle remains the same: you need to identify each data series and assign a specific color to it during the plotting process. Proper color selection can significantly improve the readability and interpretability of your scatter plots.
Here’s a general outline of how you might approach this in Python with Matplotlib:
- Import the necessary libraries (Matplotlib, Pandas, etc.).
- Load your data into a suitable data structure (e.g., Pandas DataFrame).
- Identify the column that distinguishes each series (e.g., ‘Product Line’).
- Create a loop that iterates through each unique value in the series column.
- Within the loop, filter the data to select only the data points belonging to the current series.
- Use the scatter() function to plot the selected data points, specifying a unique color for each series.
- Add labels, titles, and legends to the plot to provide context and clarity.
Practical Examples and Code Snippets
Let’s illustrate how to set different color for each series in scatter plot using Python and Matplotlib. Assume you have a dataset containing information about the relationship between advertising spend and sales revenue for different product lines. The data is stored in a Pandas DataFrame named df, with columns ‘Advertising Spend’, ‘Sales Revenue’, and ‘Product Line’. The following code snippet demonstrates how to create a scatter plot with different colors for each product line:
python import matplotlib.pyplot as plt import pandas as pd Sample Data (replace with your actual data) data = {‘Advertising Spend’: [10, 15, 20, 25, 12, 18, 22, 28, 14, 16], ‘Sales Revenue’: [25, 35, 45, 55, 30, 40, 50, 60, 32, 38], ‘Product Line’: [‘A’, ‘A’, ‘A’, ‘A’, ‘B’, ‘B’, ‘B’, ‘B’, ‘C’, ‘C’]} df = pd.DataFrame(data) Define colors for each product line colors = {‘A’: ‘red’, ‘B’: ‘blue’, ‘C’: ‘green’} Create the scatter plot fig, ax = plt.subplots() for product_line in df[‘Product Line’].unique(): subset = df[df[‘Product Line’] == product_line] ax.scatter(subset[‘Advertising Spend’], subset[‘Sales Revenue’], color=colors[product_line], label=product_line) Add labels and title ax.set_xlabel(‘Advertising Spend’) ax.set_ylabel(‘Sales Revenue’) ax.set_title(‘Advertising Spend vs. Sales Revenue by Product Line’) Add legend ax.legend() Show the plot plt.show() This code first defines a dictionary colors that maps each product line to a specific color. Then, it iterates through each unique product line, filters the data to select only the data points belonging to that product line, and plots those data points with the corresponding color. The label parameter in the scatter() function is used to create a legend that identifies each product line. You can easily adapt this code to your own data by modifying the data loading and color mapping sections. Remember to choose colors that are visually distinct and appropriate for your audience.
For Seaborn, the code would be more concise:
python import seaborn as sns import matplotlib.pyplot as plt import pandas as pd Sample Data (replace with your actual data) data = {‘Advertising Spend’: [10, 15, 20, 25, 12, 18, 22, 28, 14, 16], ‘Sales Revenue’: [25, 35, 45, 55, 30, 40, 50, 60, 32, 38], ‘Product Line’: [‘A’, ‘A’, ‘A’, ‘A’, ‘B’, ‘B’, ‘B’, ‘B’, ‘C’, ‘C’]} df = pd.DataFrame(data) Create the scatter plot using Seaborn sns.scatterplot(x=‘Advertising Spend’, y=‘Sales Revenue’, hue=‘Product Line’, data=df) plt.title(‘Advertising Spend vs. Sales Revenue by Product Line’) plt.show() Seaborn automatically handles the color mapping based on the ‘Product Line’ column using the hue parameter, simplifying the code while achieving the same result.
Best Practices and Advanced Techniques
When setting different color for each series in scatter plot, it’s essential to follow best practices to ensure that your visualizations are effective and accessible. One key consideration is the number of series you’re displaying. As the number of series increases, it becomes more challenging to choose distinct colors that are easily distinguishable. In such cases, consider using other visual cues, such as shape or size, in addition to color. Furthermore, always provide a clear and informative legend that identifies each series and its corresponding color. The legend should be placed in a location that doesn’t obscure the data points.
Another important aspect is accessibility. Ensure that your color choices are accessible to people with color blindness. Tools like ColorBrewer can help you select color palettes that are designed to be colorblind-friendly. You can also use patterns or textures in addition to color to further differentiate the series. Furthermore, consider the context in which your scatter plot will be viewed. If it will be printed in black and white, the color differences will be lost, so you’ll need to rely on other visual cues. Always test your visualizations with different audiences to ensure that they are easily understood and interpreted.
Here are some additional best practices:
- Use a limited number of colors to avoid overwhelming the viewer.
- Choose colors that are visually distinct and harmonious.
- Provide a clear and informative legend.
- Consider accessibility for people with color blindness.
- Use patterns or textures in addition to color.
- Test your visualizations with different audiences.
Advanced techniques include using color gradients to represent a third variable, or interactive features that allow users to highlight or filter specific series. For example, you could use a color gradient to represent the density of data points in each series, or allow users to click on a legend item to highlight the corresponding series on the plot. These techniques can enhance the interactivity and informativeness of your scatter plots, allowing users to explore the data in more detail.
FAQ: Common Questions About Scatter Plot Colors
- How do I choose the right colors for my scatter plot?
- Select colors that are visually distinct, harmonious, and accessible. Consider using tools like ColorBrewer to find colorblind-friendly palettes. Limit the number of colors to avoid overwhelming the viewer.
- Can I use different shapes or sizes instead of colors?
- Yes, using different shapes or sizes can be helpful, especially when dealing with a large number of series or when accessibility is a concern. Combine these with color for even better differentiation.
- How do I create a legend for my scatter plot?
- Most plotting libraries (e.g., Matplotlib, Seaborn, ggplot2) provide functions to automatically generate a legend based on the labels assigned to each series during plotting. Make sure to use descriptive labels.
- What if I have too many series to distinguish with colors?
- Consider grouping similar series together, using interactive filtering to allow users to focus on specific series, or creating separate scatter plots for different subsets of the data.
- Are there any tools that can help me select color palettes?
- Yes, tools like ColorBrewer, Adobe Color, and Paletton can help you create visually appealing and accessible color palettes for your visualizations.
- Always prioritize clarity and readability in your data visualizations.
- Choose colors strategically to highlight important patterns and trends.
We’ve covered a lot of ground, from the fundamentals of scatter plots to advanced techniques for customizing series colors using various tools. By now, you should feel confident in your ability to create compelling and informative scatter plots that effectively communicate your data insights. Experiment with different color palettes, explore different plotting libraries, and always strive to create visualizations that are both visually appealing and easily understood. Explore further into related topics such as data cleaning and preprocessing, or perhaps techniques for creating interactive dashboards. And if you are interested in other ways to visualize data, check out this article for more information.
Question & Answer :
Suppose I have three data sets:
X = [1,2,3,4] Y1 = [4,8,12,16] Y2 = [1,4,9,16]
I can scatter plot this:
from matplotlib import pyplot as plt plt.scatter(X,Y1,color='red') plt.scatter(X,Y2,color='blue') plt.show()
How can I do this with 10 sets?
I searched for this and could find any reference to what I’m asking.
Edit: clarifying (hopefully) my question
If I call scatter multiple times, I can only set the same color on each scatter. Also, I know I can set a color array manually but I’m sure there is a better way to do this. My question is then, “How can I automatically scatter-plot my several data sets, each with a different color.
If that helps, I can easily assign a unique number to each data set.
I don’t know what you mean by ‘manually’. You can choose a colourmap and make a colour array easily enough:
import numpy as np import matplotlib.pyplot as plt import matplotlib.cm as cm x = np.arange(10) ys = [i+x+(i*x)**2 for i in range(10)] colors = cm.rainbow(np.linspace(0, 1, len(ys))) for y, c in zip(ys, colors): plt.scatter(x, y, color=c)
Or you can make your own colour cycler using itertools.cycle and specifying the colours you want to loop over, using next to get the one you want. For example, with 3 colours:
import itertools colors = itertools.cycle(["r", "b", "g"]) for y in ys: plt.scatter(x, y, color=next(colors))
Come to think of it, maybe it’s cleaner not to use zip with the first one neither:
colors = iter(cm.rainbow(np.linspace(0, 1, len(ys)))) for y in ys: plt.scatter(x, y, color=next(colors))
